20000CBM per year Autoclaved Aerated Concrete (AAC) block plant factory price
AAC block production line ,AAC block plant composes machine of various sizes.The aerated block production techonlogy is to make raw materials after grinding,mixing pulp in a certain proportation ,then poured into the mould ,rest foam ,cutting,steaming,finally fininshed product.

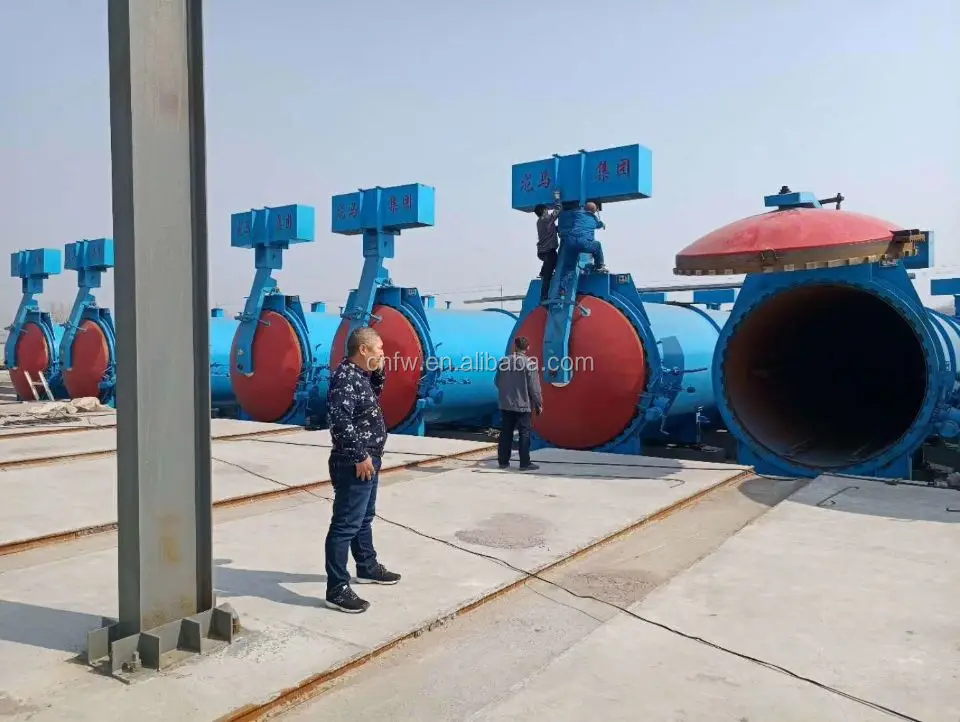

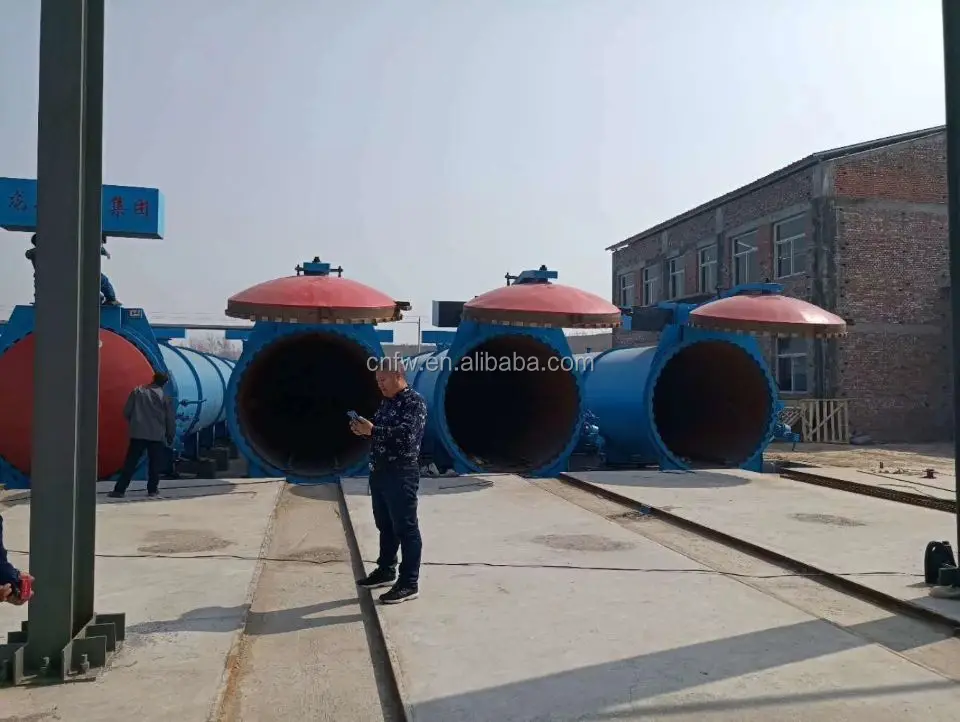

AAC block plant is consisted of crusher,ball mill, mixer, elevator,pouring machine, model frame, molding plate, steam car,and autoclave,etc.Specific machine is planned and designed according to the actual sites.At the same time ,the machine's price is decided by depending on the specific situations.
The degree automation of AAC block machine is divided into 3types : simple , semi automatic, and full automatic machine.
AAC block Advantages Light weight: Aerated concrete density is usually 400-700kg/m3, (according the market in produce ), same as 1/3 of clay brick and 1/5 common concrete. So use the Light brick can reduce the weight of the build more, and also reduce the beam of roof and pillar press best. then you can see, it can save the material and cost, it also fighting shaking. Keeping temperature: It has many porous, the delivery hearting coefficient is 0.9-0.22W/(mk),the same as 1/4 or 1/5 of clay brick, so it is best materials now in the world. Also many kinds raw material, have lowest waste. Main Materials: coal ash sand waste mine material coal stone, stone dust and other silicon materials.

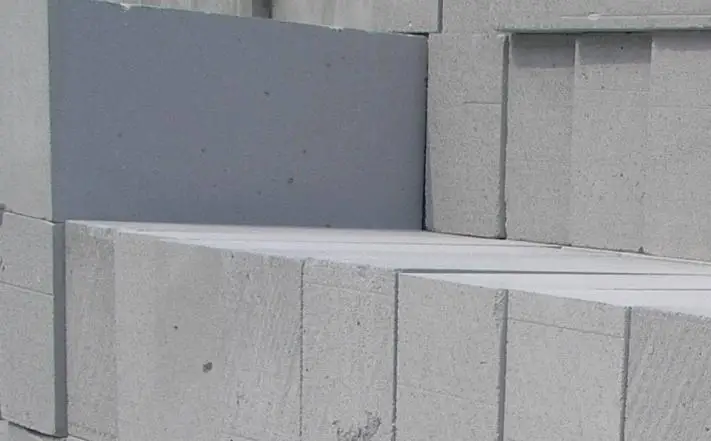

Aerated concrete brick ( ligh brick) is the light and porous building material. It has light weight keeping temperature cant burn and other advantages. It can be made into many kinds of bricks ( for example: 600×200×100, 80 ×80 ×180,240 ×115 ×53,600 × 200 ×125), they could be used industry building and common building. They are more and more popular in the world. In the future, they will replace the clay brick .
Processing of raw materials:
Quick lime is sent by vibrating feeder and belt conveyor into jaw crushers to smash. Smashed lime is sent into lime silo by bucket elevator and then is transported into ball mills by screw conveyer. Fined materials are sent into proportion bin by screw conveyer and bucket elevator.Aluminium powder is lifted by a truss motor to second layer of batch planta and empty into mixer.Then quota water is poured to make aluminium powder into suspension.
3. Aerated block Ingredients,Stiring and Casting
Fly ash (or sand or stone powder )and waste slurrry are measured in measuring tank.After the measuring and mould in their place,slurry stirring begins.Slurry temperature should reach about 40°-This is technical requiremnents.If the actual temperture doesn’t arrive 40°,vapor is used in the measuring tank to raise temperature.Half or one minutes before casting,aluminium suspension is supposed to be added to the slurry.
4. Pre-curing and Cutting Process
Cut model is conveyed to precuring room for gas forming. Room tempreture should range from 50°to 70°.This period lasts one hour and a half totwo hours.(If materials take on geographical advantages,this precuring can be eliminated. Precured green body together with mould frame will be lifted to cutting station that is covered by autoclave board .After frame detachment,cutting machine do cross-cutting, vertical cutting, face-milling and tip-binding. At the same time, die grid is hanged to precuring cart for manual cleaning and degresing to prepare for the next perfusion. The cutting ready embryois are carried to precuring cart together with die seat, palletizing in two tiers, four pillars between two the tiers, and get into grouping process.When the cutting of body is completed, partial waste materials cut down will be processed into waste material slurry which then will be pumped to the slurry tank located at the topmost story of batching building, after that, add the necessary raw material, then transported into a pulping machine for reuse.
1.help customers find the right product by professional technology and business consultation
2.provide plans of the machines installation freely
3. make customized products according to the clients requirements
1.highly inspecting equipments in each working procedure ,quality comes first
2.fast and safty delivery
3.assist clients to bulid the equipment
4.dispatching engineers to install and test equipments
5.train the first-line operators on site
6.provide lifetime maintenance service
Gongyi Fuwei HeavyMachinery Plant is located in Gongyi city , 82kilometers away from zhengzhou city (capital of Henan province) ,we have an office in zhengzhou Zhongyuan Wanda Plaza which is convenient for your visit.
We are engaged in the scientific research , production and sales of energy saving heavy machinery and have more than 20years manufacturing experience and have CE and ISO 9001:2008 Certificate .
Our production lines:Autoclaved Aerated Concrete (AAC) block production line , Sand processing line, cement production line and mining production line.
Our main products: Jaw Crusher, hammer crusher, ball mill, sand making machine, flotation machine, rod mill, wet pan mill, dryer ,rotary kiln, AAC block making machine, brick machine,nail making machine,charcoal machine.
We can provide you the site visit ,free project design, free technological process design before order and installation, commissioning and trainning after order.
